4SD/6T Multistage Deep Well Submersible Pump

Feature
CONTACT CATALOG PDF
  • Technical Parameters
  • Ecterprise Strength
  • Any Question
Applications
For water supply from wells or reservoirs
For domestic use for civil and industrial applications

Operating conditions
Maximum fluid temperature up to +35 ℃
Maximum sand content0.25%
Maximum immersion:80m
Minimum well diameter: Φ4"

Motor and pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO 9906

Options on request
Special mechanical seal
the voltage or frequency 60Hz
Single phase motor with built-in capacitor

Components Material
Pump extemal casing AISI 304 SS
Delivery casing Cast-Cu ASTM C855002AISI 304 SS
Suction lantern Cast-Cu ASTM C855002 AISI 304 SS
Diffuser Plastic:PC
lmpeller Plastic:POM
Shaft AISI316 ss  AISI 304 SS
Shaft coupling AISI 316 ss AISI 304 SS
Wear ring AISI 304 ss & Ceramic
Motor external casing AISI 304 SS
Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well (Graphite-Ceramic/TC)
Shaft AISI 303 Ss-ASTM 1045/5410
Bearing NSK/C&U
Seal lubricant oil Oil for food machinery and pharmaceutic use

MODEL P DN DIMENSIONS(mm) WaIGHT(kg)
1~220V/240V 3~
380V/415V		 kw E p kg
4SDM6/5 4SD6/5 0.37 11/4"/11/ 2"2" 100 413 3.5
4SDM6/7 4SD8/7 0.55 11/4"/11/ 2"2" 100 479 4.1
4SDM6/8 4SD6/8 0.75 11/4"/11/ 2"2" 100 512 44
4SDM6/9 4SD6/9 0.75 11/4"/11/ 2"2" 100 545 4.7
4SDM6/10 4SD6/10 1.1 11/4"/11/ 2"2" 100 578 4.9
4SDM6/12 4SD6/12 1.1 11/4"/11/ 2"2" 100 644 5.5
4SDM6/13 4SD6/13 1.5 11/4"/11/ 2"2" 100 676 5.8
4SDM6/15 4SD6/15 1.5 11/4"/11/ 2"2" 100 742 6.4
4SDM6/18 4SD6/18 2.2 11/4"/11/ 2"2" 100 841 7.2
4SDM6/21 4sD6/21 2.2 11/4"/11/ 2"2" 100 972 8.1
4SD6/24 3 11/4"/11/ 2"2" 100 1070 8.9
4sD6/28 3 11/4"/11/ 2"2" 100 1202 10.1
4SD6/32 4 11/4"/11/ 2"2" 100 1334 112
4SD6/36 4 11/4"/11/ 2"2" 100 1466 12.3
4sD6/40 5.5 11/4"/11/ 2"2" 100 1629 13.5
4SD6/44 5.5 11/4"/11/ 2"2" 100 1781 14.6
4SD6/48 7.5 11/4"/11/ 2"2" 100 1893 15.7
4SD6/52 7.5 11/4"/11/ 2"2" 100 2025 16.9

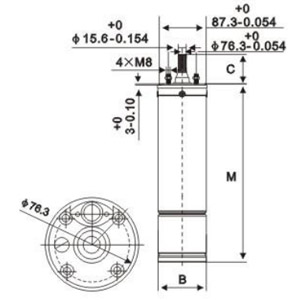

MODEL P2 DIMENSIONS(mm) WEIGHT(kg)
1~220V/240V 3~380V/415V HP M(S) M(T) B c M(s) M(T)
0.37 0.37 0.5 313 313 Φ95 38 6.9 6.6
0.55 0.55 0.75 328 328 Φ95 38 7.6 7.2
0.75 0.75 1 343 343 Φ95 38 8.2 7.9
0.75 0.75 1 358 343 Φ95 38 8.9 7.9
1.1 1.1 1.5 378 378 Φ95 38 9.8 9.5
1.1 1.1 1.5 398 378 Φ95 38 10.7 9.5
1.5 1.5 2 423 413 Φ95 38 11.8 11
1.5 1.5 2 448 413 Φ95 38 12.9 11
2.2 2.2 3 501 448 Φ95 38 15.3 12.6
2.2 2.2 3 541 501 Φ95 38 174 15.2
3 4 526 Φ95 38 16.4
3 4 551 Φ95 38 17.7
4 5.5 581 Φ95 38 19.2
4 5.5 616 Φ95 38 20.9
5.5 7.5 672 Φ95 38 22.9
5.5 7.5 712 Φ95 38 24.9
7.5 10 762 Φ95 38 27.4
7.5 10 812 Φ95 38 29.9

MODEL P2 DELVERY                                  n≈2850 r/min
1~220V/240V 3~380V/415V kw HP Q(m3/h)/(l/min) 0 1.2 2.4 3.6 4.8 6 7.2 8.4
0 20 40 80 80 100 120 140
4SDM6/5 4SD6/5 0.37 0.5 H(m) 32 31 29 27 25 21 16 11
4SDM6/7 4SD6/7 0.55 0.75 45 44 41 38 35 30 23 15
4SDM6/8 4SD6/8 0.75 1 52 50 47 43 4o 34 26 17
4SDM6/9 4SD6/9 0.75 1 58 57 53 49 45 38 30 19
4sDM6/10 4SD6/10 1.1 1.5 64 83 58 54 50 42 33 21
4SDM6/12 4SD6/12 1.1 1.5 77 75 70 85 8o 51 39 25
4SDM6/13 4SD6/13 1.5 2 84 82 76 70 85 55 43 27
4SDM6/15 4SD6/15 1.5 2 97 94 88 81 75 64 49 32
4SDM6/18 4SD6/18 2.2 3 116 113 105 98 80 76 59 38
4SDM6/21 4SD6/21 2.2 3 135 132 123 114 105 89 69 44
4SD6/24 3 4 155 151 140 130 120 102 79 51
4SD6/28 3 4 180 176 164 152 139 119 92 59
4SD6/32 4 5.5 206 201 187 174 159 136 105 68
4SD6/36 4 5.5 232 226 210 195 179 153 118 78
4SD6/40 5.5 7.5 258 252 234 217 199 170 132 85
4SD6/44 5.5 7.5 283 277 257 239 219 187 145 93
4SD6/48 7.5 10 309 302 281 260 239 204 158 102
4SD6/52 7.5 10 335 327 304 282 259 221 171 110
